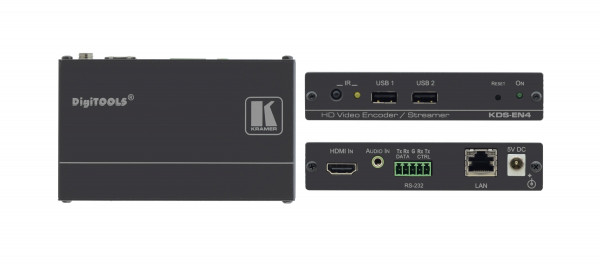

KDS-EN4

HD Video Encoder/Streamer

• High Resolution Video Encoding and Compression supporting the following resolutions: 1080p@60Hz (on the decoder only), 1080p@30Hz, 720p@60Hz, and 720p@30Hz.
• Maximum Compatibility Fully standard and compliant H.264/MPEG−4 AVC (Advanced Video Codec) and AAC (Advanced Audio Code) codecs, enable compatibility with other software and hardware encoders. Open encoding enables software decoding through VLC® player software.
• Flexible Audio Support Embedded HDMI and unbalanced analog stereo line in for both the encoder input and decoder output.
• Standard Ethernet Network Operation 10/100/1000Mb.
• Selectable Streaming Mode Unicast or multicast through RTSP (Real Time Streaming Protocol).
• Customizable Recording Store streaming sessions on a computer or external USB storage appliance.
• Powerful, Versatile and User-friendly Device Management Manage device operation and settings, using Kramer Network Enterprise Management Platform.
• Flexible Operation Operate the unit by RS−232 remote control or through the embedded web pages. Control an external device via the RS−232 DATA port.
• Easy Installation Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side−by−side mounting of 3 units in a 1U rack space with the optional rack adapter.

• Produktabmessung: 12.00cm x 7.15cm x 2.44cm (4.72 x 2.81 x 0.96 ) W, D, H
• Versandabmessung: 15.70cm x 12.00cm x 8.70cm (6.18 x 4.72 x 3.43 ) W, D, H
• Produktgewicht: 0.5kg (1.1lbs) approx.
• Versandgewicht: 1.0kg (2.3lbs) approx.
