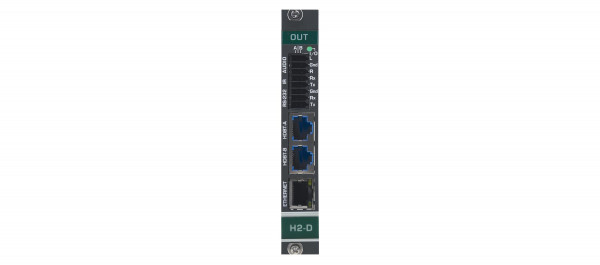

DTAxrD2-OUT2-F34

2-Kanal 4K HDR HDBaseT Ausgangskarte mit analogem Ton und erweiterter Reichweite

• Max. Data Rate 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
• Max. Resolution 4K@60Hz (4:4:4).
• Analog Audio Embedding/De–embedding or ARC On the same jack.
• HDBaseT Technology HDTV compatible, HDCP 2.2/1.4 compliant.
• System Range Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension: Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension: IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D Pass–Through.

• Produktabmessung: 25.00cm x 13.00cm x 2.00cm (9.84 x 5.12 x 0.79 ) W, D, H
• Versandabmessung: 29.30cm x 16.50cm x 5.90cm (11.54 x 6.50 x 2.32 ) W, D, H
• Produktgewicht: 0.2kg (0.5lbs) approx.
• Versandgewicht: 0.4kg (0.9lbs) approx.

Gebrauchsanleitung:
